What is a padel court?

As a unique racket sport, Padel has indeed gained more and more attention and popularity around the world. Padel originated in Mexico in the late 1960s and was introduced to Spain in the 1970s, where it was greatly welcomed, especially in the southern region and the Basque region. Compared with a tennis court, a padel court occupies a smaller area, with a standard size of 10 meters wide by 20 meters long, and is surrounded by glass. This enclosed design increases the elasticity of the ball and the continuity of the game.

If you are planning to build one or more padel courts, or even a full padel club, it is vital to carefully evaluate the relevant factors before launching the project. This article will provide you with a step-by-step breakdown of the key points to focus on when implementing this plan.

We will explore the cost of building a padel court to help you understand the core elements to consider when developing a project budget. We will emphasize the importance of obtaining a building permit and analyze the foundation requirements and construction steps and prices of padel courts in detail, the construction prices of indoor and outdoor courts, and we will also discuss the construction and costs of various parts of a padel court, and focus on an often overlooked but equally important area: choosing the most suitable booking management software for your padel court.

How much space do you need to build a padel court?

When building a padel court, space planning is crucial. The standard dimensions of a doubles padel court are 20 meters long and 10 meters wide, while the dimensions of a singles court are 20 meters long and 6 meters wide.

To ensure a good playing experience, the minimum space requirement for a doubles court is 11 meters by 21 meters, plus an additional 0.5 meters of safety space on each side, with a minimum area of ​​approximately 231 square meters. The requirement for a singles court is 11 meters by 7 meters, plus a 0.5 meter buffer zone.

Although these are minimum requirements, we recommend leaving more space around the court to enhance the playing experience. Especially in outdoor venues, the impact of sunlight and wind cannot be ignored, and a reasonable layout and direction selection will significantly improve the quality of the game. As a supplier of UNIPADEL, we emphasize providing customers with high-quality products and professional layout advice to ensure that every player can enjoy the best padel experience.

How to construct the installation foundation of the padel court?

When building a padel court, the levelness of the foundation is crucial, especially ensuring that the ground is completely even without any potholes or uneven areas, as this affects the following three key aspects:

The stability of the structure and glazing installation;
Drainage problems when it rains and the formation of ponding;
The quality of the game, especially the bounce of the ball.

When installing a padel court, the two common foundation solutions are to use porous concrete or semi-polished concrete slabs. Both solutions have their advantages and are described below.

Semi-polished concrete slab

If the court is located in an outdoor area without paving, UNIPADEL recommends using semi-polished concrete slabs as the foundation. This material generally has a transverse slope of 0.5%, which helps drainage and is often the preferred solution due to its durability, cost-effectiveness and fast construction speed.

Porous concrete slab

If the court is located in a completely level ground, or in a place where the field can effectively collect rainwater, UNIPADEL recommends using porous concrete slabs. This design can effectively collect rainwater by draining water through the porous surface and keeping the whole area flat and high.

Porous concrete foundation

For padel courts with porous concrete as foundation, the perimeter strip must be at least 30x30cm wide (40x40cm recommended) and reinforced with concrete suitable for the foundation (e.g. HM-25/20MM) and corresponding steel bars. The thickness of the concrete layer in the playing area of ​​the court should be 15 to 18 cm, with corresponding steel bars to ensure structural stability.

Foundation structure

For the construction of the foundation, the following is usually done:

Compacting the base: First, compact the base, either natural gravel or selected Z2 gravel, until a modified Proctor compaction of 96% is achieved.
Artificial gravel layer: Lay a layer of artificial gravel to form a drainage slope.
HM-25 concrete slab: Construct a concrete slab with an appropriate slope to ensure good drainage.
Drainage pipes: Use drainage pipes to guide the water flow. If gable slabs are used, the drainage slope is usually towards the sides of the court to ensure smooth water flow.
Drainage layer: Drainage gravel is laid 8 to 20 cm thick under the concrete slab to help the water flow.
Surface treatment: Finally, a porous pavement of 12 to 15 cm thickness is laid on the surface, and the edges are made of selected lightweight gravel and cement mortar to ensure flatness and necessary slope for effective drainage.

Semi-polished concrete slab

When using semi-polished concrete slab, it is necessary to set the perimeter formwork, apply 6 mm mesh or fiber and concrete (such as HM-25/20MM) to build the slab. The size of the slab should be at least 21 meters long and 11 meters wide, with a thickness of 12 to 15 cm, keep it flat and ensure that the structure of the padel court can be placed and fixed.

If a drainage slope is required, it is usually required to be less than 0.5% on one side. The final surface treatment is usually helicopter polishing to avoid slipping on the turf surface.

Lighting facilities

The lighting circuits can be arranged through conduits embedded in the slab or perimeter grooves. These grooves guide the lighting circuits to vents or protection boxes, and the vents should be set near the lamp posts. Once the trench is excavated, it must be properly filled or covered to avoid safety hazards.

In summary, whether using porous concrete or semi-polished concrete slabs, the key is to ensure that the foundation can drain smoothly and remain flat, thus providing a solid foundation for the long-term use of the padel court.

Who will build the padel court ground foundation construction?

When choosing a company to build the foundation, it is most cost-effective to contact a local construction company nearby, which usually has some knowledge of your organization. Building the foundation is not complicated and we can also provide assistance with foundation planning and liaise with construction companies to ensure construction complies with our system requirements.

Ensuring that the foundation is correctly constructed and installed is vital to the overall performance and longevity of the padel court. Therefore, it is recommended to hire a professional contractor to ensure the foundation is correctly installed and of high quality.

Asphalt or concrete padel court foundation construction?

When it comes to choosing a base material for a padel court, both asphalt and concrete have their own advantages and disadvantages, which can have a significant impact on construction costs.

Asphalt is a common choice with a relatively low initial cost.

This makes it a popular choice for outdoor courts. It provides a stable foundation, but in extreme climate conditions, asphalt may crack or shift, requiring regular maintenance.

Although concrete has a higher initial investment, its durability and low maintenance requirements make it more cost-effective in the long run.

Especially in areas with variable climates, concrete provides better stability and is widely used in indoor padel courts. Concrete's flat surface ensures performance and safety, making it a wise investment.

UNIPADEL recommends that when choosing a base material, it is necessary to consider the project budget, expected frequency of use and climate conditions. Although concrete has a higher initial investment, its long-term durability and low maintenance requirements can help facility operators effectively reduce future repair costs. Therefore, in the long run, concrete is an ideal choice for those who want to minimize future expenses.

Padel court foundation construction price

UNIPADEL reminds you to understand the key steps of building a padel court. After the initial soil survey, the new builder needs to dig and level the site. Building the foundation of the padel court is a crucial step. We recommend laying a solid layer of concrete on the ground, followed by a layer of asphalt to ensure the stability and durability of the court. Depending on the size and location of the court, the cost of foundation construction usually ranges from US$3,000 to US$10,000.

Choosing UNIPADEL, you will receive efficient and professional support to ensure that your padel court has a solid foundation from the beginning.

Does an outdoor or indoor padel court affect construction costs?

When choosing an indoor or outdoor padel court, construction costs are influenced by several factors, especially in terms of structural requirements, climate considerations and facility features.

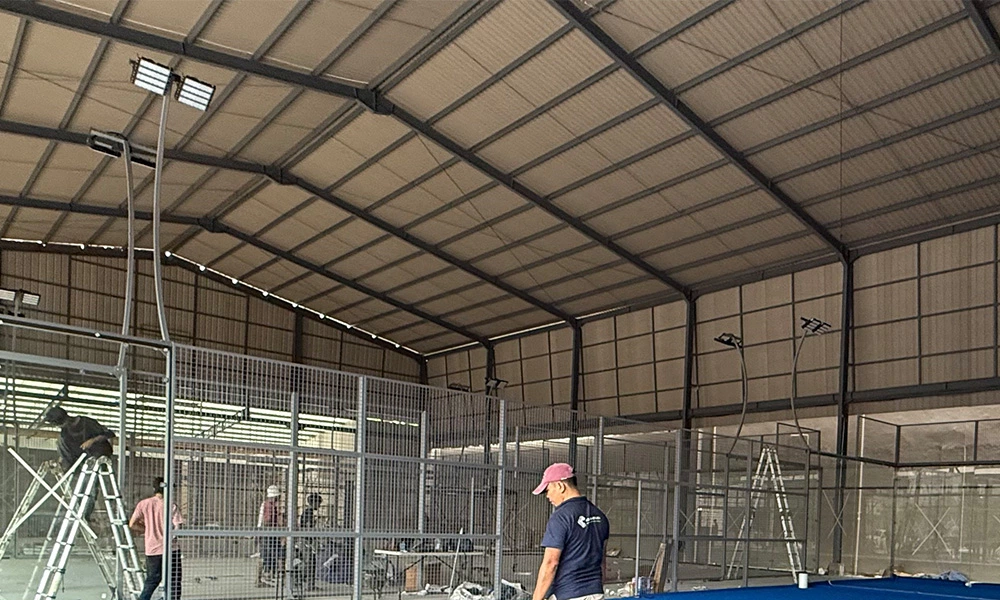

From a UNIPADEL perspective, indoor padel courts typically require additional building structures or roofs, which makes the initial investment relatively high. In contrast, outdoor courts have lower construction costs because no additional structural support is required. Outdoor courts also need to consider drainage systems to cope with inclement weather, which will increase some costs, while indoor courts can adopt a simpler under-floor design and reduce the need for ongoing maintenance.

In terms of lighting, indoor courts require comprehensive lighting systems, which increases overall construction and operating expenses. In contrast, outdoor courts can take advantage of natural light, significantly reducing energy costs. At the same time, indoor courts need to be equipped with heating and cooling systems to provide a comfortable playing environment, which further increases costs.

In terms of maintenance, indoor courts generally have lower long-term maintenance costs due to their weatherproof design, while outdoor courts may face higher maintenance costs and need to regularly deal with the challenges brought by sunlight, rainfall and temperature changes.

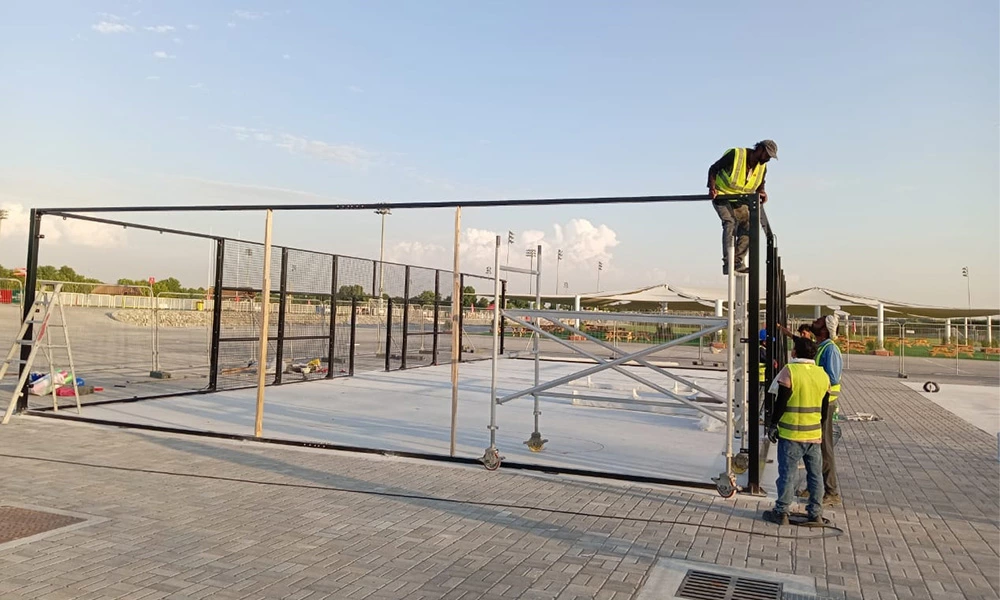

How to build a international standard padel court?(construction and installation)

Design and Planning

Although padel courts are relatively small in size, planning permission is required for both new construction and site renovation. During the planning phase, conceptual designs and specification documents are developed. Once planning approval is obtained, these documents will form the basis for technical drawings during the construction phase.

Environmental considerations

In order to ensure that the padel court is structurally stable, functional and safe to use, the foundation must be carefully designed. The reinforced concrete ring beam is designed by the structural engineer to ensure the overall stability of the court and to ensure that the supporting columns or frame panels are firmly connected to the foundation slab.
The design process will incorporate a number of elements to reduce the court's environmental impact, including artificial surfaces made of environmentally friendly materials, water runoff management solutions, and lighting design to control floodlight overflow. In addition, a detailed construction plan will be developed to ensure that the construction site is safe and efficient, in accordance with relevant laws, regulations and safety regulations. Best practices.

UNIPADEL strictly follows international standards when building padel tennis courts to ensure the professionalism and safety of the venue. The following are the installation details from three aspects: fence, pillars and glass:

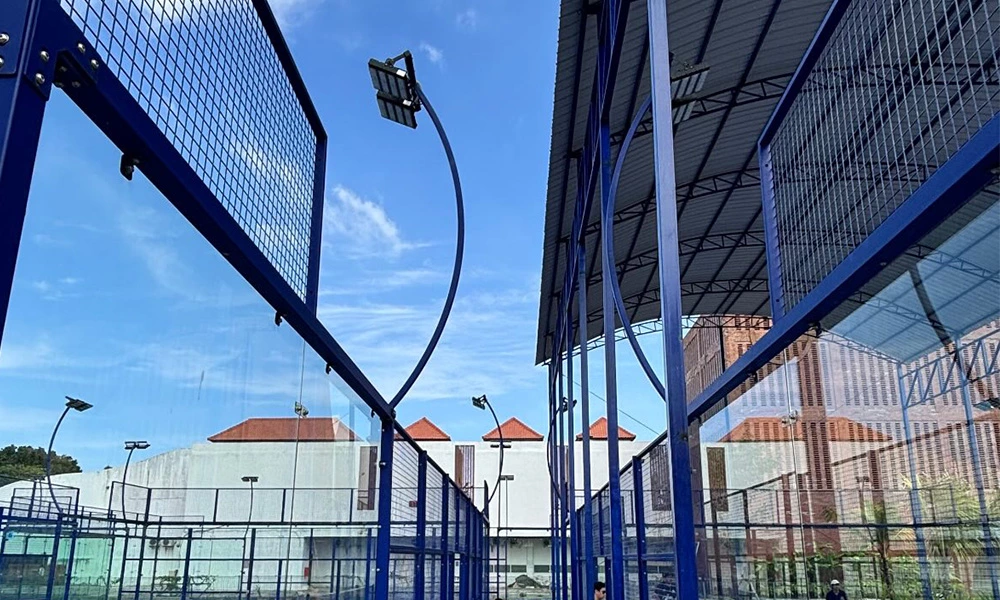

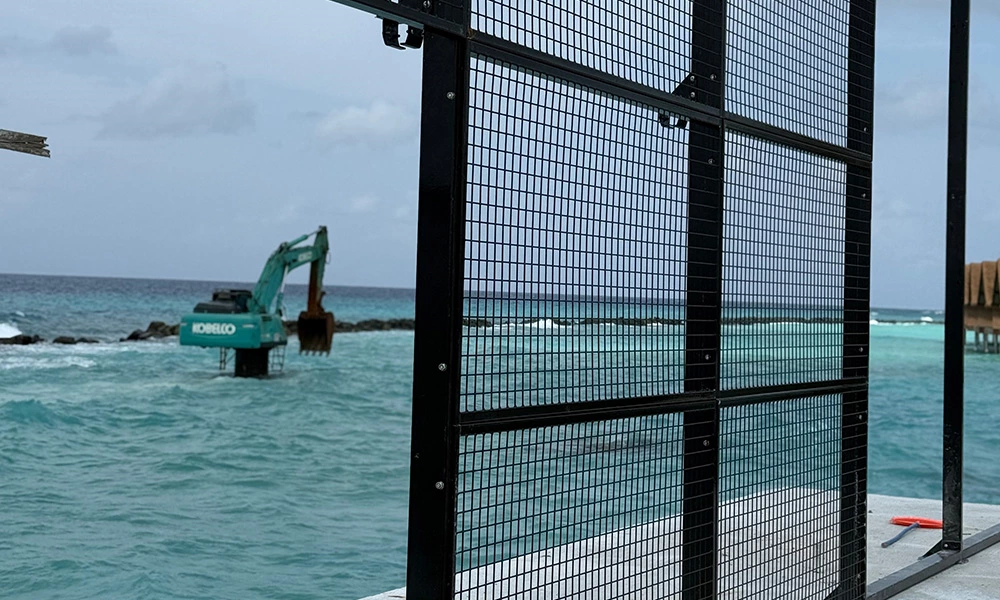

Fence

The installation of the fence is crucial. The standard fence height is 4 meters, forming a closed space around the court to ensure the rebound effect of the ball and the smoothness of the game. Pre-welded frames (=1 piece)for max. stability instead of multiple pieces contruction, 2 horizontal bars on mesh side for optimal stability and flexibility. Frame steel tubes of 80 x 40 mm on rest of the structure(instead of 40 x 40 mm). The material of the fence is usually high-strength polyethylene or nylon woven mesh, which has good weather resistance and impact resistance. During installation, it is necessary to ensure that the tension of the net wire is uniform to avoid deformation caused by wind or impact.

Pillar

The setting of the pillars should be firm and stable. Hot dip galvanised steel and optional Extra Long-termcorrosion protection (for areas with heavy corrosion load)powder coated according the strict procedures. 4 attachment points of reinforcement tubes, 6 expansion screws per vertical column will hold the whole structure to the ground.The pillars are generally made of hot-dip galvanized steel pipes with a diameter of 10 cm and a buried depth of at least 1 meter to ensure their stability in high-intensity competitions. Reinforcement tubes 80 x 80 mmon vertical columns. The position of the pillars should match the size of the venue to ensure a close connection with the fence to avoid affecting the game due to movement.

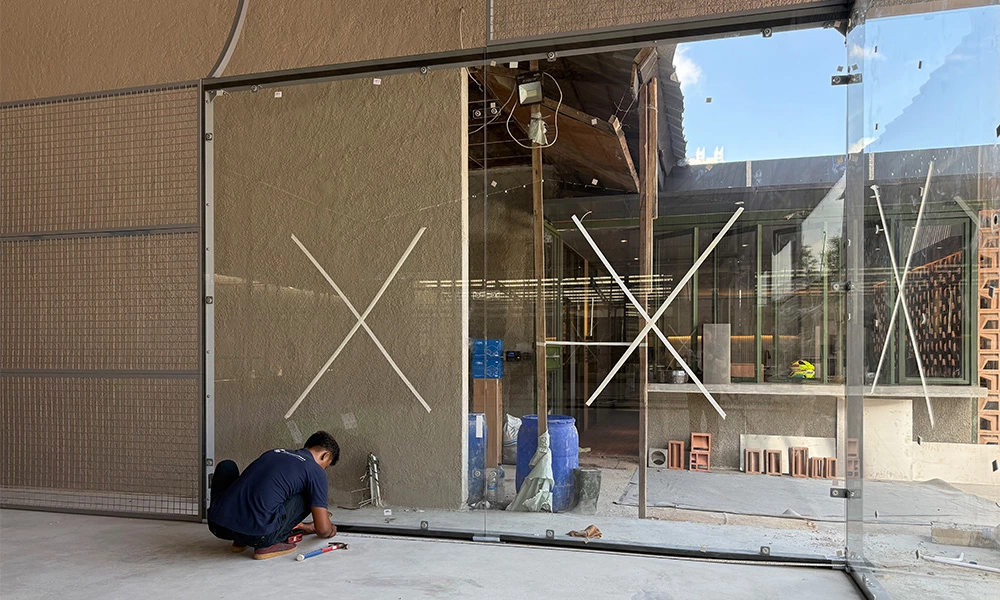

Tempered glass

The installation of glass is the key to enhancing the visual effect of the venue and the game experience.Steel tube of 80 x 40 mm supports glass on all 4 sidesfor max. stability of the glass The glass height of a standard padel tennis court is 3 meters, and tempered glass is usually used with a thickness of 10 mm to ensure safety. The installation of glass requires the use of professional fixtures to prevent breakage or displacement during intense competition. At the same time, the glass surface must be kept clean to ensure that spectators and athletes can clearly observe the game.

Note when loading and unloading glass: Be sure to use wooden strips as cushions so that it is not easy to hit hard objects and break. When installing the glass into the frame, adjust the position and then lift it onto the frame.

Through the above meticulous installation process, UNIPADEL ensures that each padel tennis court can provide a high-level competitive environment and viewing experience.

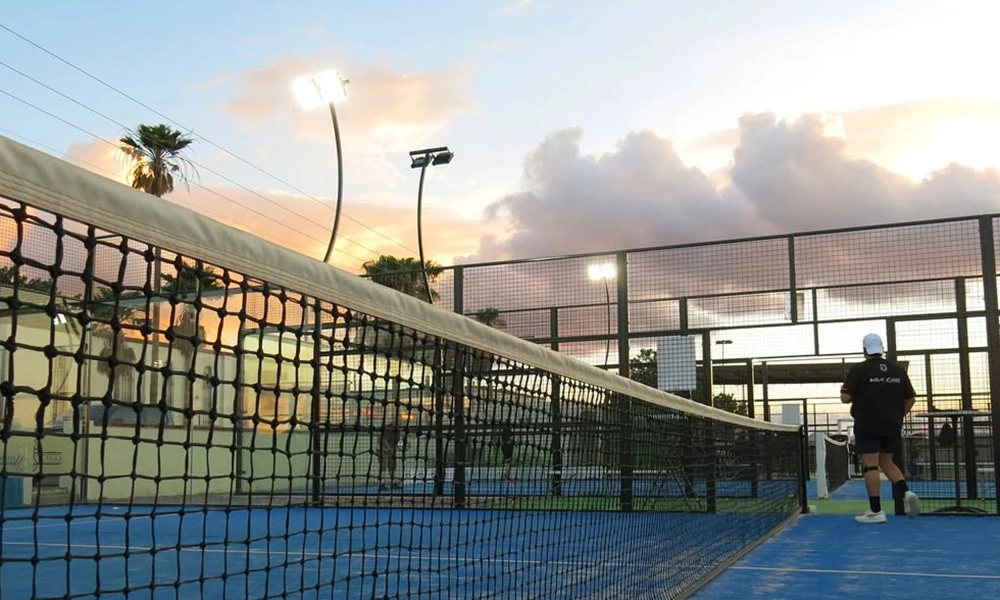

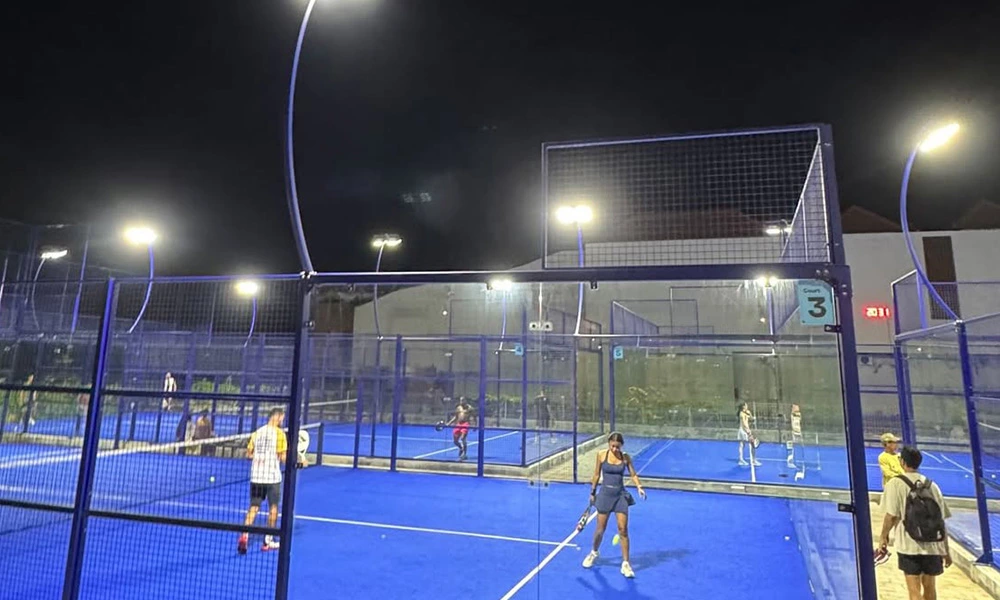

Lighting

When UNIPADEL built the paddle tennis court, it paid special attention to the design of lighting and turf to ensure the best experience for athletes. First of all, the lighting system uses high-efficiency LED lighting to provide uniform lighting, reduce shadows and glare, and help athletes stay focused during the game. The lighting brightness is adjustable to meet the needs of different time periods and activities, ensuring the possibility of all-weather use.

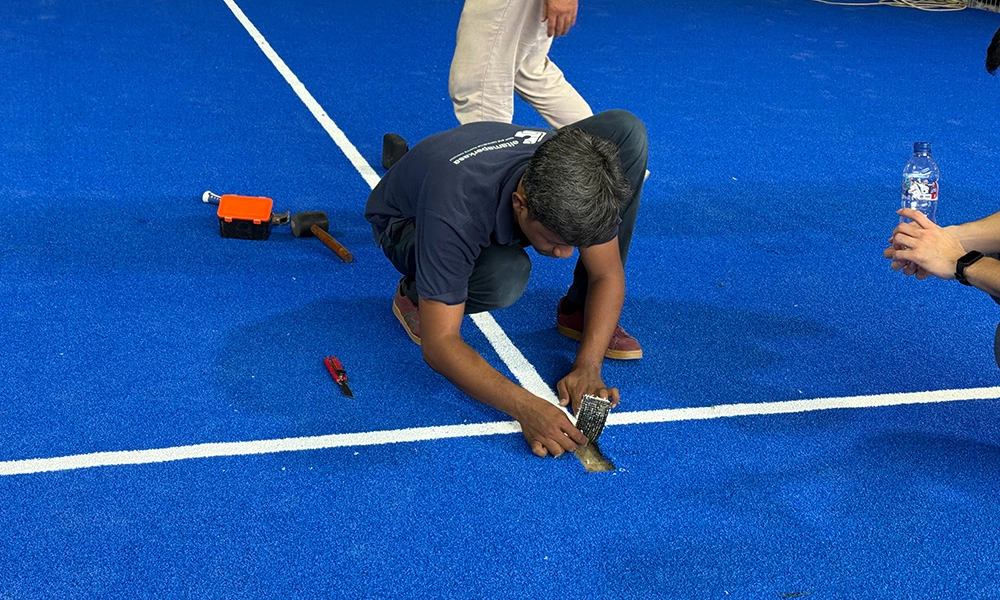

Padel Artificial turf

The choice of artificial turf is crucial. UNIPADEL uses upgraded KDK artificial turf. The ultimate grass silk has good wear resistance and elasticity, which can effectively reduce sports injuries to athletes. The color and texture of the turf are carefully designed, which not only provides excellent visual effects, but also enhances the grip of the venue and improves the overall quality of the game. The maintenance system of the turf simplifies daily cleaning and maintenance work, ensuring that the court is in the best condition for athletes to use. This comprehensive design makes UNIPADEL's paddle tennis court both beautiful and practical.

All facilities must comply with the relevant standards of the International Padel Federation (FIP) and undergo strict quality inspections after construction to ensure the service life and safety of the padel court.

How to maintain a padel court?

Maintenance of a padel court is a key step in extending its lifespan and ensuring a high-level playing experience. The main tasks include regular cleaning of the court, checking and repairing walls and nets for safety, and maintaining the lighting system to provide good visibility.

Maintenance can be done in-house or by a professional service, depending on the complexity of the task, available resources and the skill level of the team.

In-house maintenance

Routine tasks such as cleaning the court, checking the net tension and troubleshooting obvious damage can usually be done by an in-house team. Daily cleaning should promptly remove leaves, debris and foreign objects that may affect the safety of the court or people. For outdoor courts, additional treatment may be required after bad weather, such as clearing snow or water.

Professional maintenance

Complex problems such as repairing court damage, replacing aging artificial turf or solving drainage problems usually require the intervention of professional services. Similarly, when it comes to electrical work such as maintaining the lighting system, it is safer and more efficient to be operated by professionals.

In general, daily cleaning and basic maintenance can be done in-house, but it is recommended to invite a professional team to conduct a comprehensive inspection every 1 to 2 years and complete the necessary repairs or replacements. This not only helps extend the life of the court, but also ensures the best possible playing experience.

How long does a padel court last for?

A professionally built and well-maintained padel court can usually last up to 10-15 years. This high durability is mainly due to the selection of high-quality materials and rigorous manufacturing processes. In most cases, the frame of the padel court is made of laser-cut hot-dip galvanized steel, which has excellent corrosion resistance and structural stability. In addition, the court is equipped with 12 mm tempered glass and hot-dip galvanized steel welded mesh, which not only ensures excellent visual effects but also remains intact under strong impacts.

In order to improve safety, the court is also specially designed with an anti-injury system, which not only protects athletes from accidental injuries, but also enhances the durability of the overall facility. In daily use, regular cleaning and maintenance can effectively extend the life of the court, keep it in the best condition at all times, and meet the needs of different scenarios. In short, this design ensures the safety of users and guarantees the long-term performance of the court.
