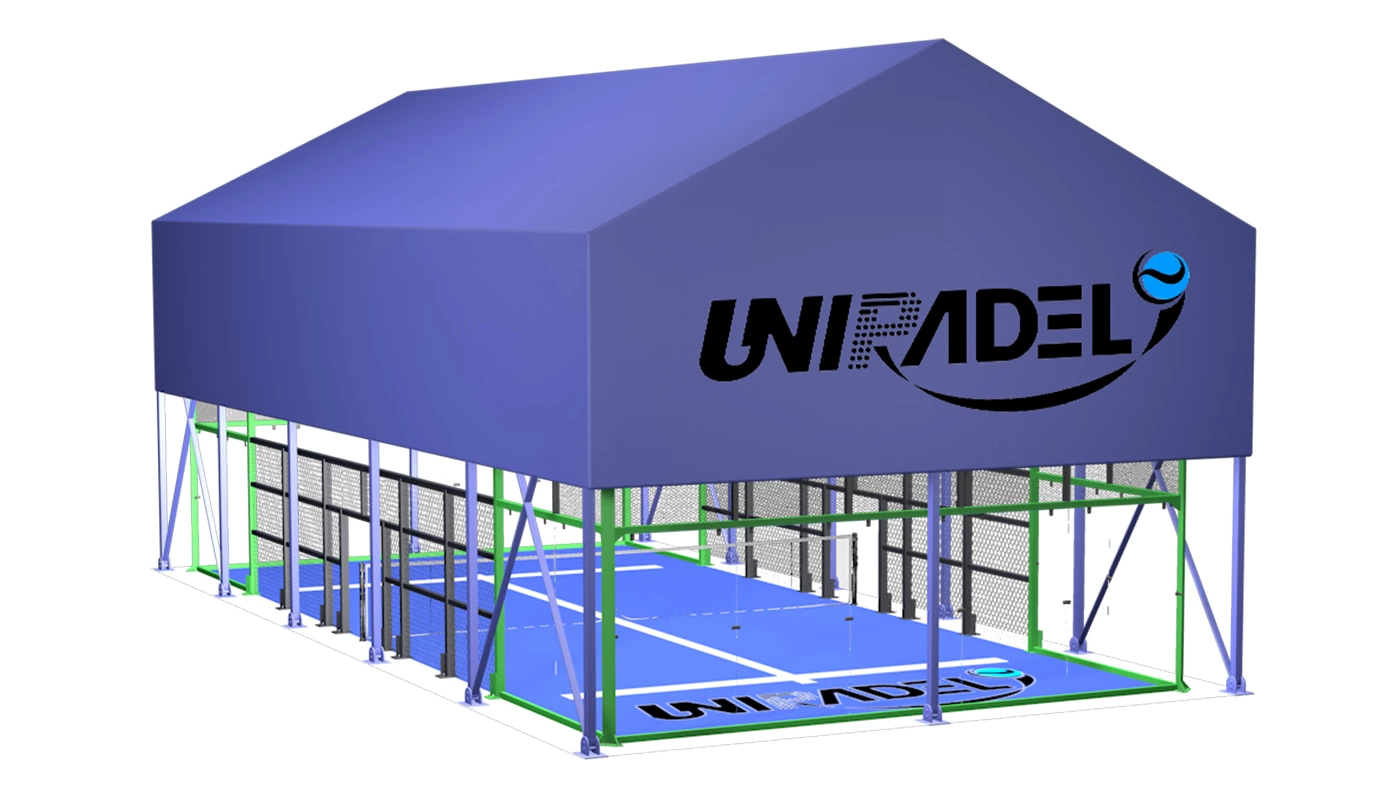

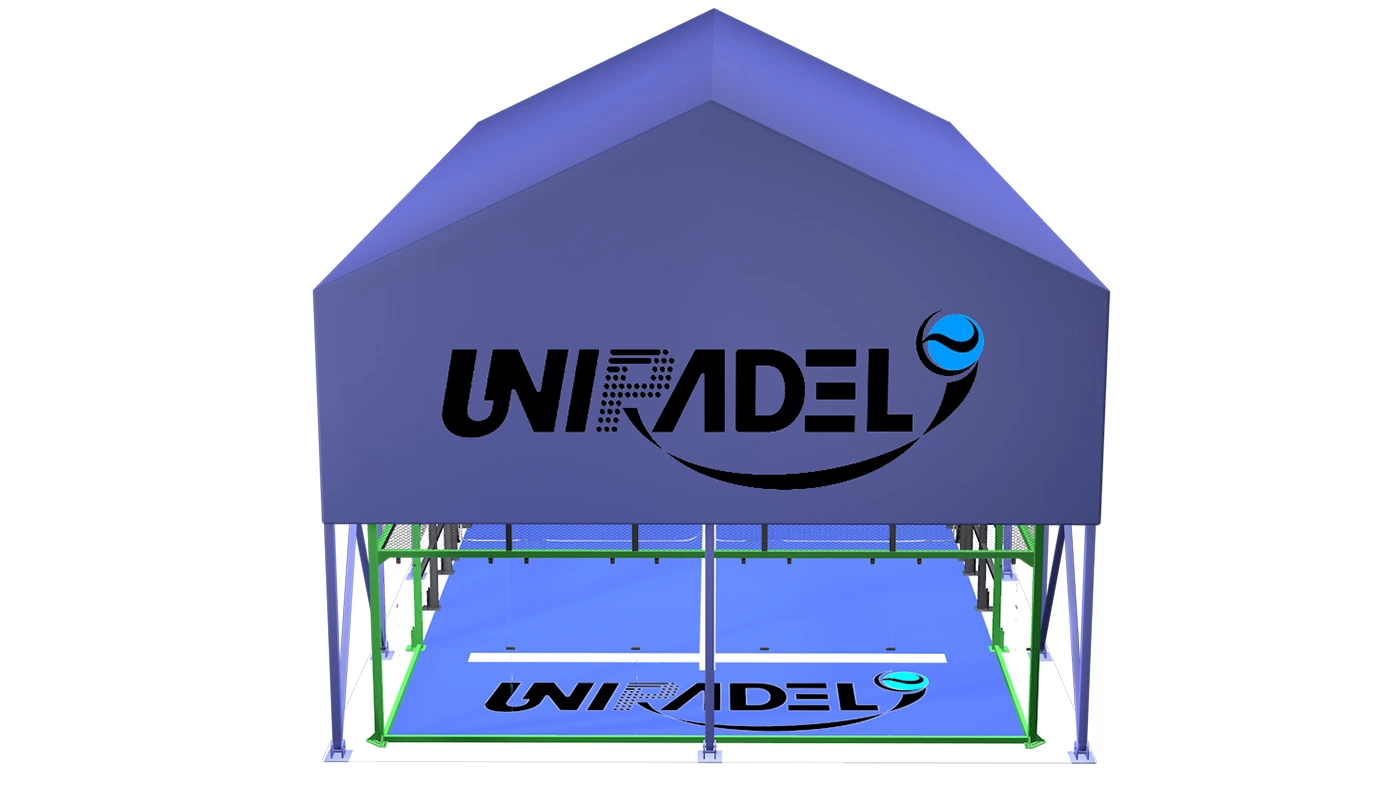

Panoramic Padel Court with Roof

Introduction

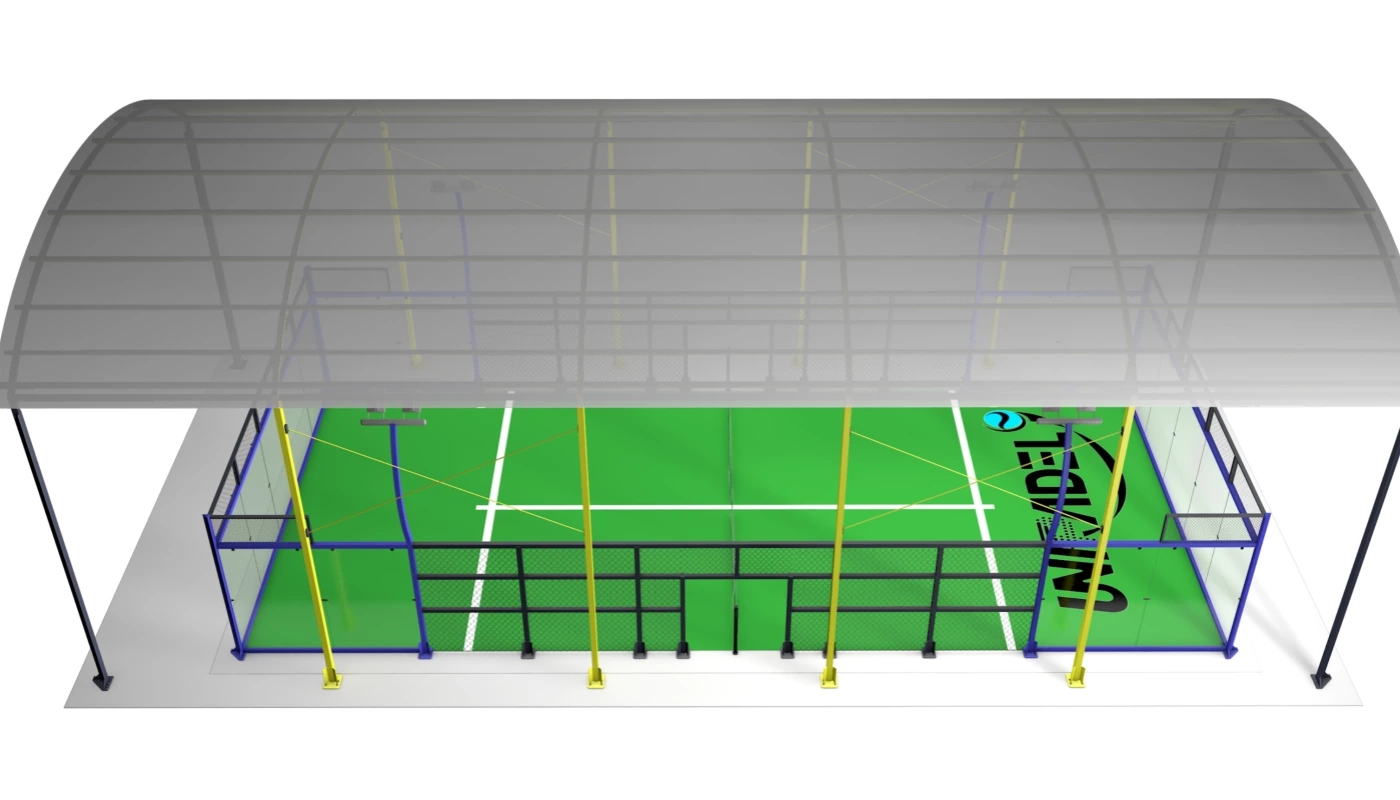

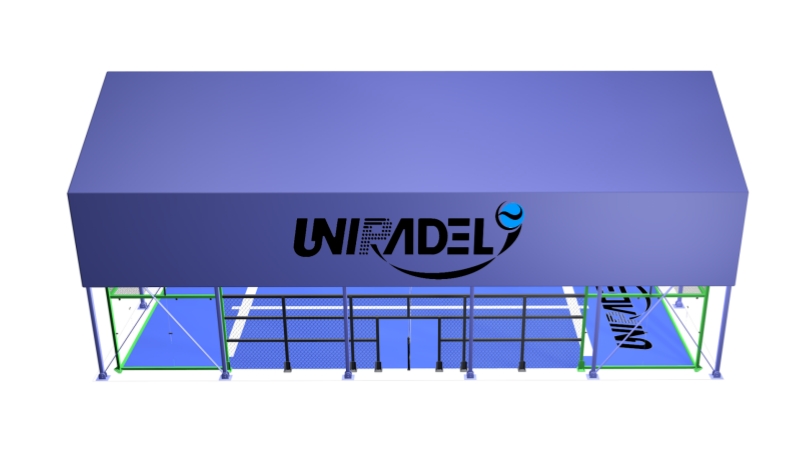

The panoramic padel court with roof combines modern design, high-quality materials and advanced technology, making it an ideal choice for sports enthusiasts outdoors.The size of the court is 10*20m, and the roof ridge height is 8m. The roof has a variety of designs, and you can choose a fully enclosed or semi-enclosed structure to ensure full use of natural light. Its sturdy structure can withstand various adverse weather conditions, including rain, snow and strong winds, so that the court can be used normally in any climate. This design not only improves the convenience of exercise, but also effectively reduces the glare problem caused by direct sunlight, thereby improving the comfort of competition and training, and providing a good experience for athletes and spectators.

In addition, the glass enclosure of the court is combined with an efficient lighting system to further enhance the viewing and comfort of the game. The glass enclosure not only provides a clear view, but also allows the audience to fully feel the passion and atmosphere of the game. At the same time, the lighting system ensures that the court remains visible at night or in low light conditions. This panoramic padel court with roof design is suitable for community facilities and professional arenas, meeting diverse needs and providing excellent results. Whether it is for leisure and entertainment or competitive competition, this court creates a high-quality environment for athletes and spectators.



Advantages of panoramic padel court with roof

1. Effectively avoid the impact of bad weather on competition and training

Compared with traditional open venues, the panoramic padel court with a roof has become the first choice for more and more outdoor clubs and private venues. The roof can effectively avoid the impact of bad weather on competition and training, especially in rainy days, strong winds or extreme sunlight, providing a more stable sports environment. Roofed venues can ensure the comfort of athletes and spectators and extend the use season.

2. The design of the roof uses aluminum alloy profile materials

The design of the two roofs can enhance the structural stability of the stadium and provide better safety. By using high-strength and weather-resistant aluminum alloy profile materials, the covering layer: 850g/m*PVC, temperature resistance (℃): -30~70. The roof can reduce the damage to the venue by the external environment and extend the service life of the venue.

3. Fixed lighting equipment optimizes the venue effect

The panoramic padel court with a roof can also help optimize the lighting effect of the venue, especially during night games. Because the roof can fix the position of the lighting equipment, it ensures that the light is evenly distributed and avoids shadows affecting the fairness of the game and the viewing experience of the audience. From the perspective of aesthetics and modernization, the stadium's appearance is more unique and technological, which can attract more sports enthusiasts and commercial customers and enhance the club's image and popularity.

Structure Technical Details

Panoramic Padel Court with Roof

Padel Court Dimensions

The standard panoramic padel court with roof size is 10 meters wide and 20 meters long, with a rectangular layout. This compact size provides an efficient and tight space for competition, suitable for doubles competitions

Galvanized Steel Mesh

Material: Hot Galvanized Steel Grade: Q235B

Frame column size:50mm 30mm2mm(c)

Mesh hole size: 50mm"50mm"4mm

Mesh size : 1x2m/Piece

Surface treatment:Powder coating

Galvanized Steel Post

Material: Hot Galvanized Steel Grade: Q235B

Corner post:80mm"80mm"3mm, height: 3M

Column: 80mm"60mm"3mm, height: 3M

Cross bar: 80mm"80mm"3mm, length: 4m/5m

Light Arm size:50*50*2.5mm, H:3M(c shape )

Center post: 80mm"80mm"3mm Height:980mm

Padel Court Tempered Glass

Thickness: 12mm

Light Transmission(TL %): 87%

Outdoor Reflection (RLe%):7.9%

Glass size: 1990mm*3000mm */pieces

Package: Wood Carton

Finish: Hole drilled"

Padel Turf

Fibrillated polypropylene artificial turf fiber with progressive fibrillation alignment model

Pile height: 12mm

Yarn Dtex: 9500 Dtex

Backing: Latex PP+Net+Sbrwith white marking line together

Warranty: 8 years for outdoors

Color:Blue,Light Blue、Green、Purple 、Pink or customized

Certificate:CE, SGS, ROHS, REACH"

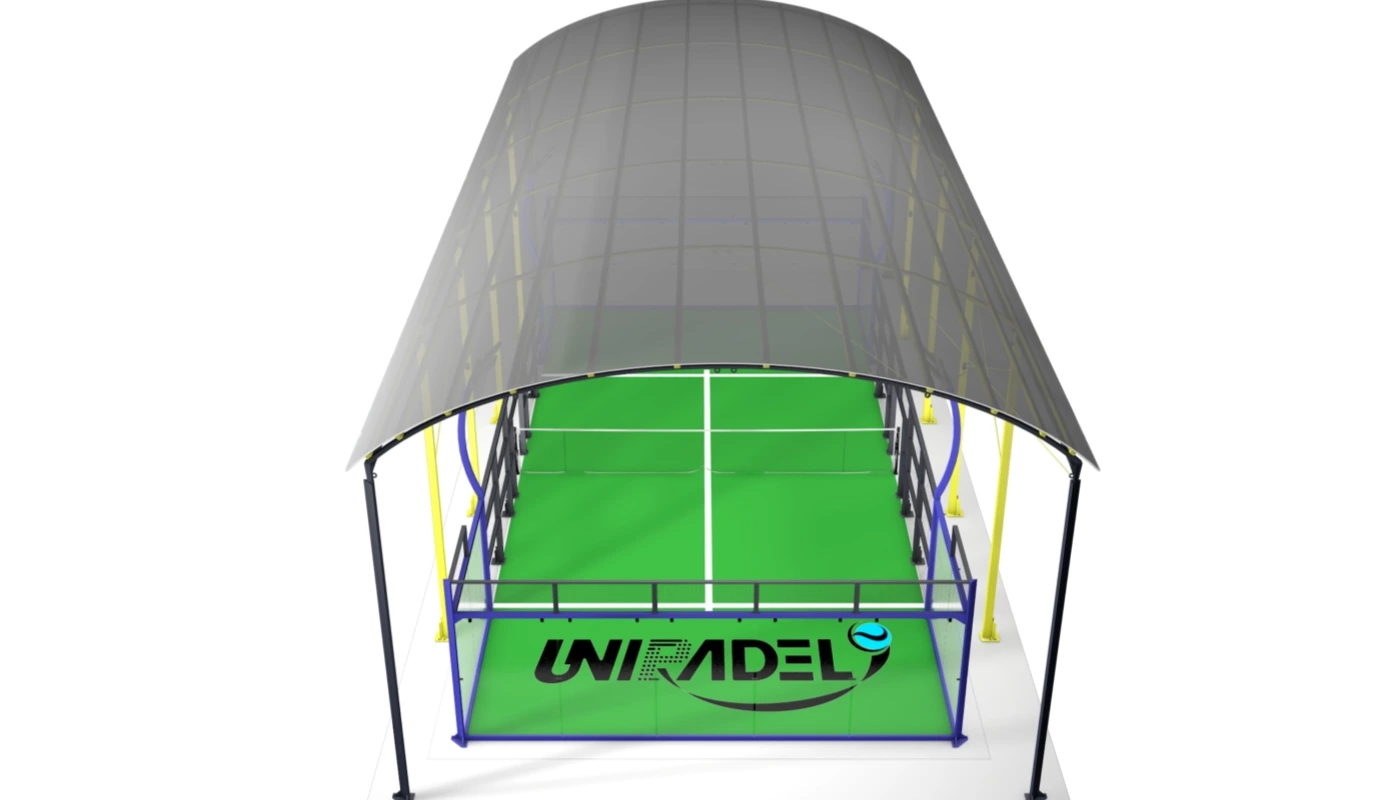

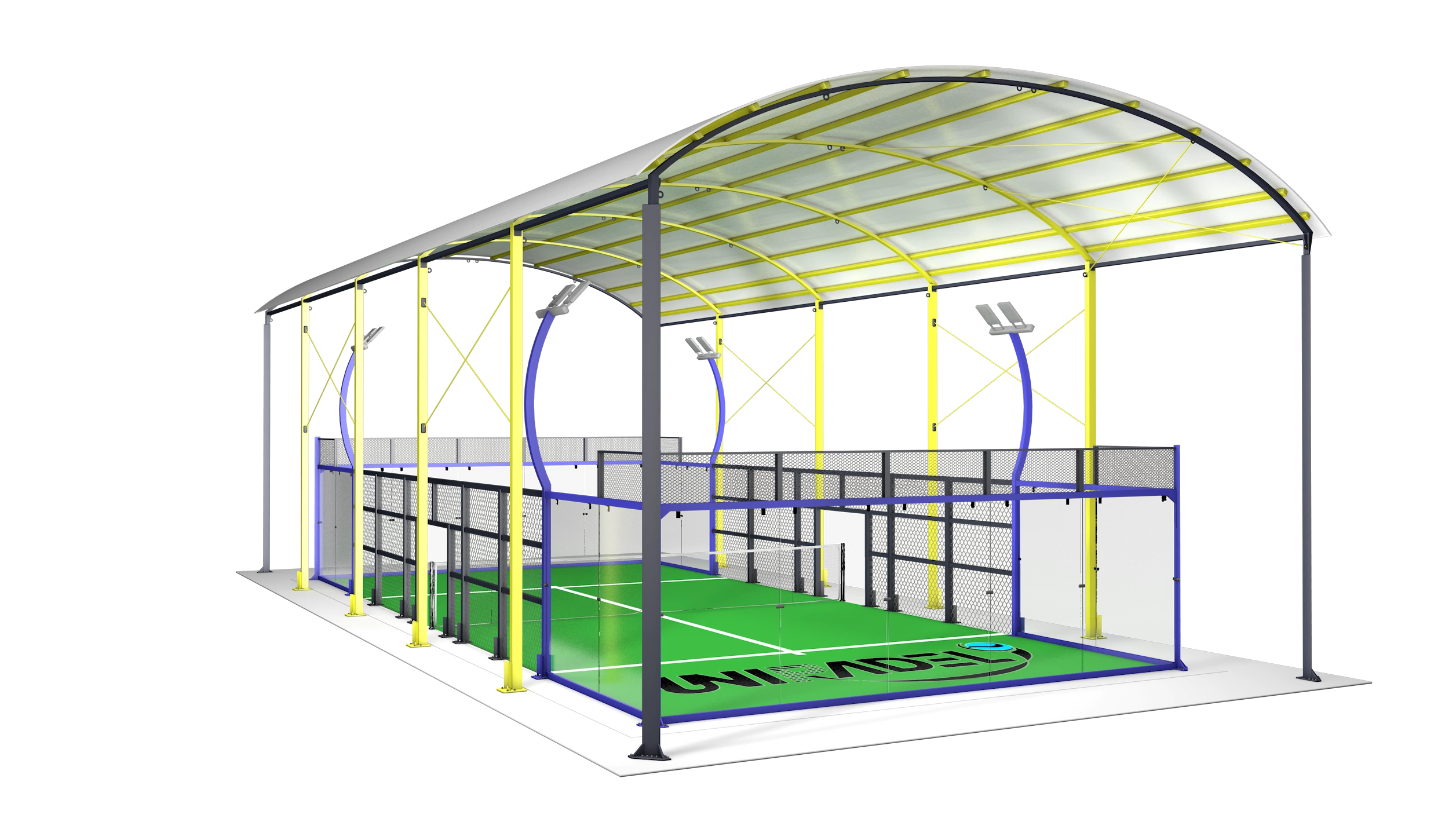

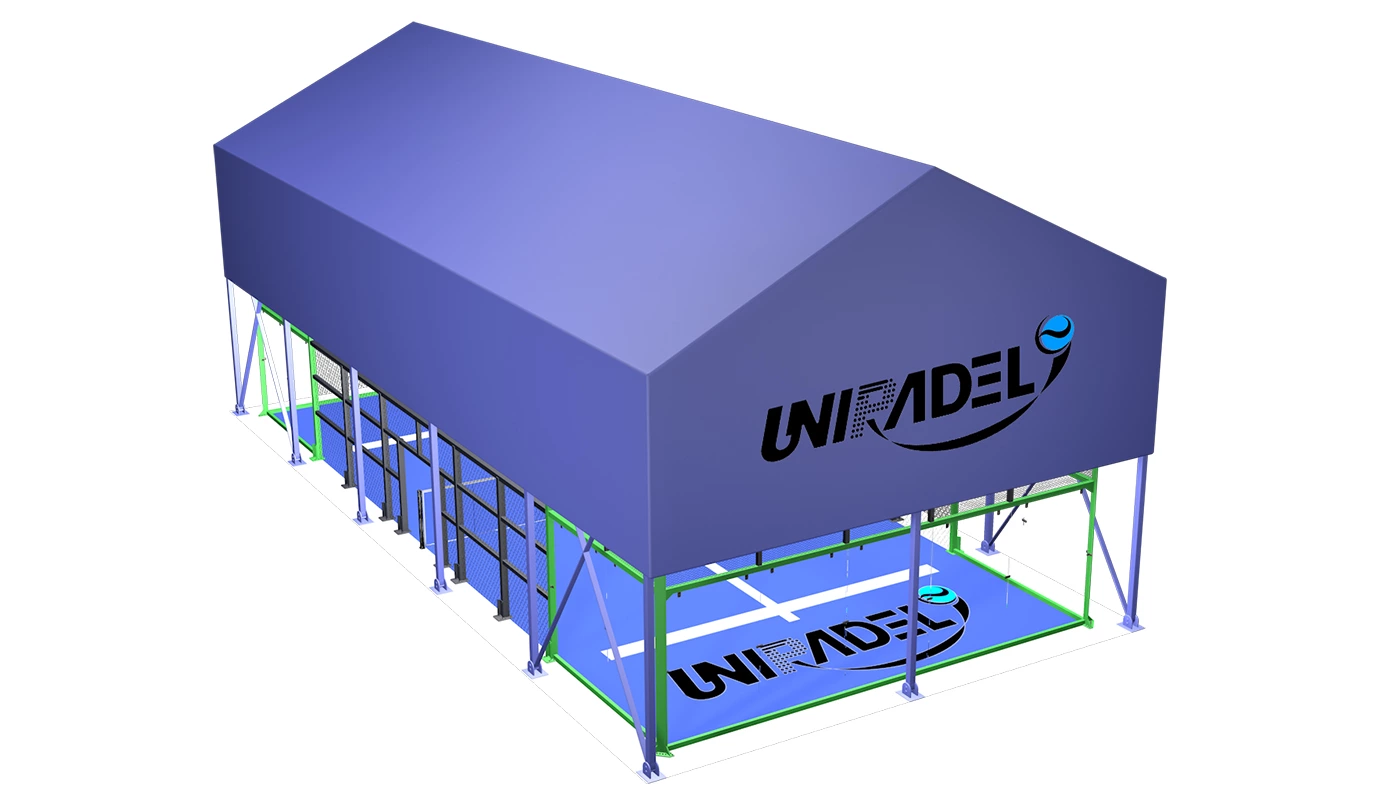

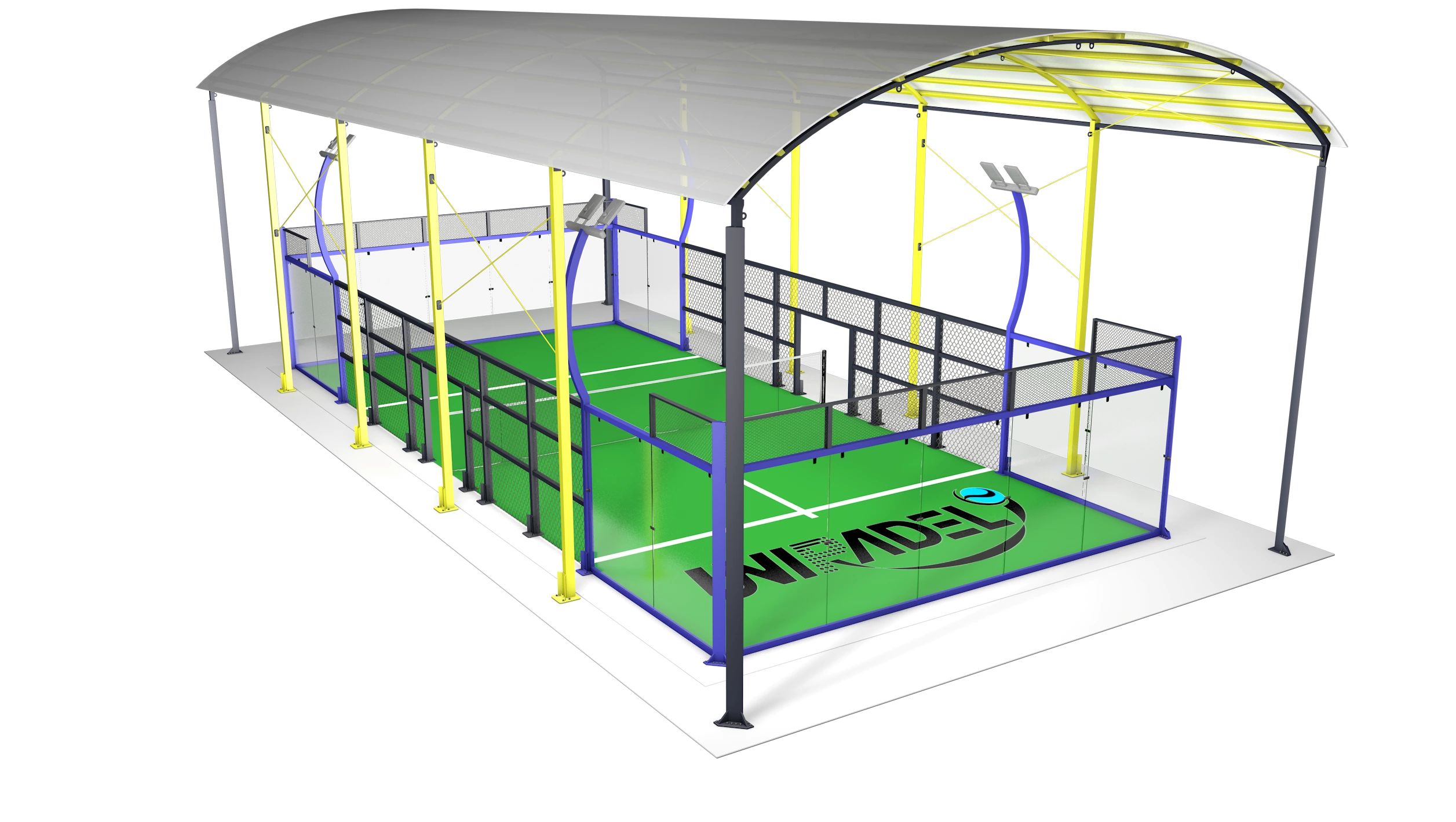

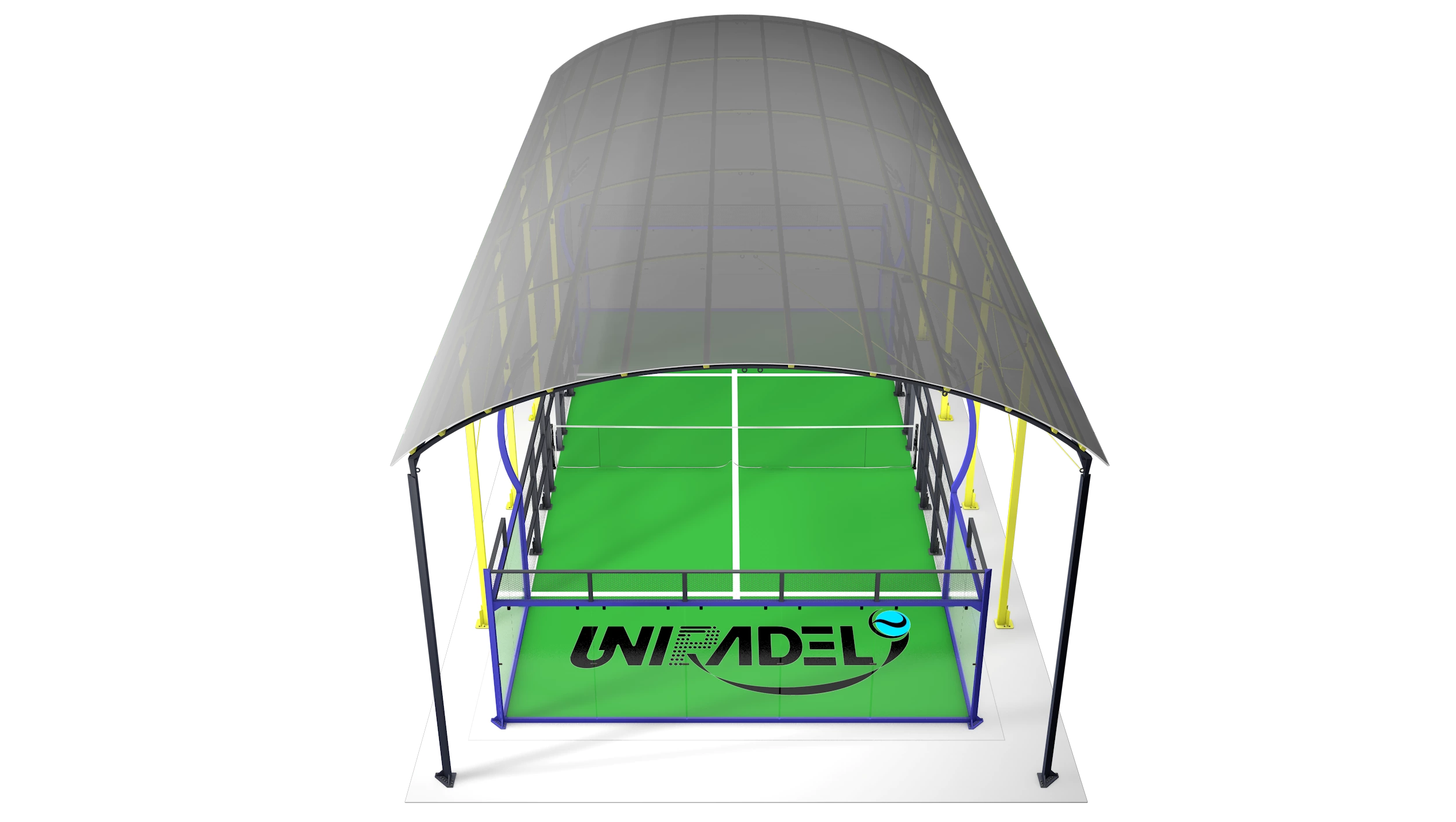

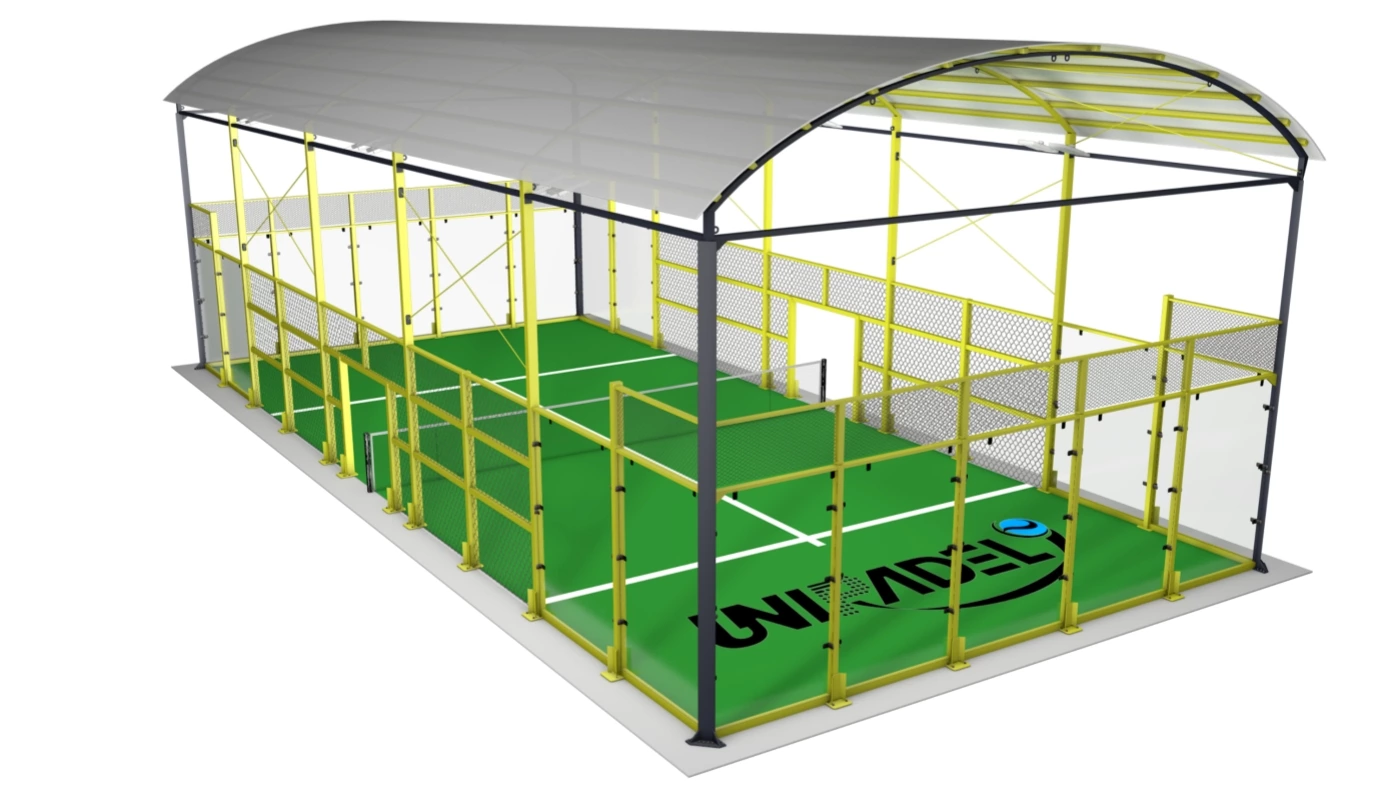

Padel Court Roof/Tent

The arched main beam is made of aluminum alloy profiles150*80*4.0mm thick,the crossbar is made ofaluminum profiles 50*50*2.$mm,the column is made ofaluminum profiles150*80*4.0mm thick,and the tarpaulin is made of PVC material 0.6mm thickSide height 6m, center height 8m.

Frame Structure: Aluminum alloy profiles

Main Profile Size: 204*120*4mm

Base size: 450*450mm

Cover: 850g/m*PVC

Temperature resistance (C):-30~70

Wind resistance: wind strength <10

Sidewall Height :3M fixed

Eave Height: 6M , Ridge Height:8M

Padel Court Lighting

Working voltage: AC220V

Power: 200W

Luminous efficiency: ≥120LM/W

Power factor: ≥0.95

Lamp bead color temperature: 5700K

Color rendering index: Ra70

Light source type: SMD 3030

Protection class: IP65

Working Temperature: – 25ºC ~ +45ºC

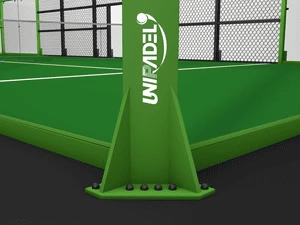

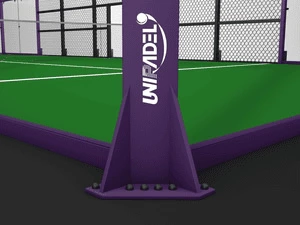

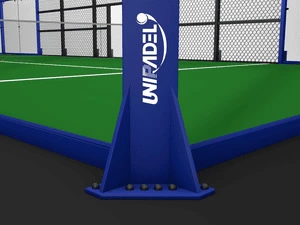

Padel Courts Design

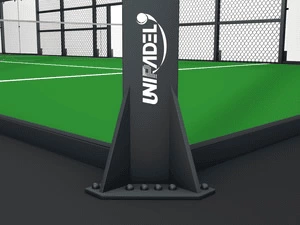

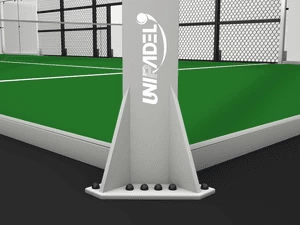

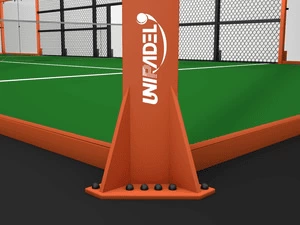

UNIPADEL provides customized padel court posts in a variety of colors to meet personalized needs for the appearance of the venue.

The black frame is stable and elegant, suitable for high-end venue design; the blue frame is full of vitality and brings a sense of freshness; the orange frame is bright and enthusiastic, suitable for fashionable style venues; the white frame is simple and elegant, highlighting the high-end atmosphere; the green frame is natural and environmentally friendly, blending in with the environment; the purple frame is mysterious and unique, increasing the visual appeal of the venue.

In addition to the above, customers can also choose other custom colors according to their brand or personal preferences. The choice of frame color is usually combined with the lawn color to ensure the best overall visual effect.

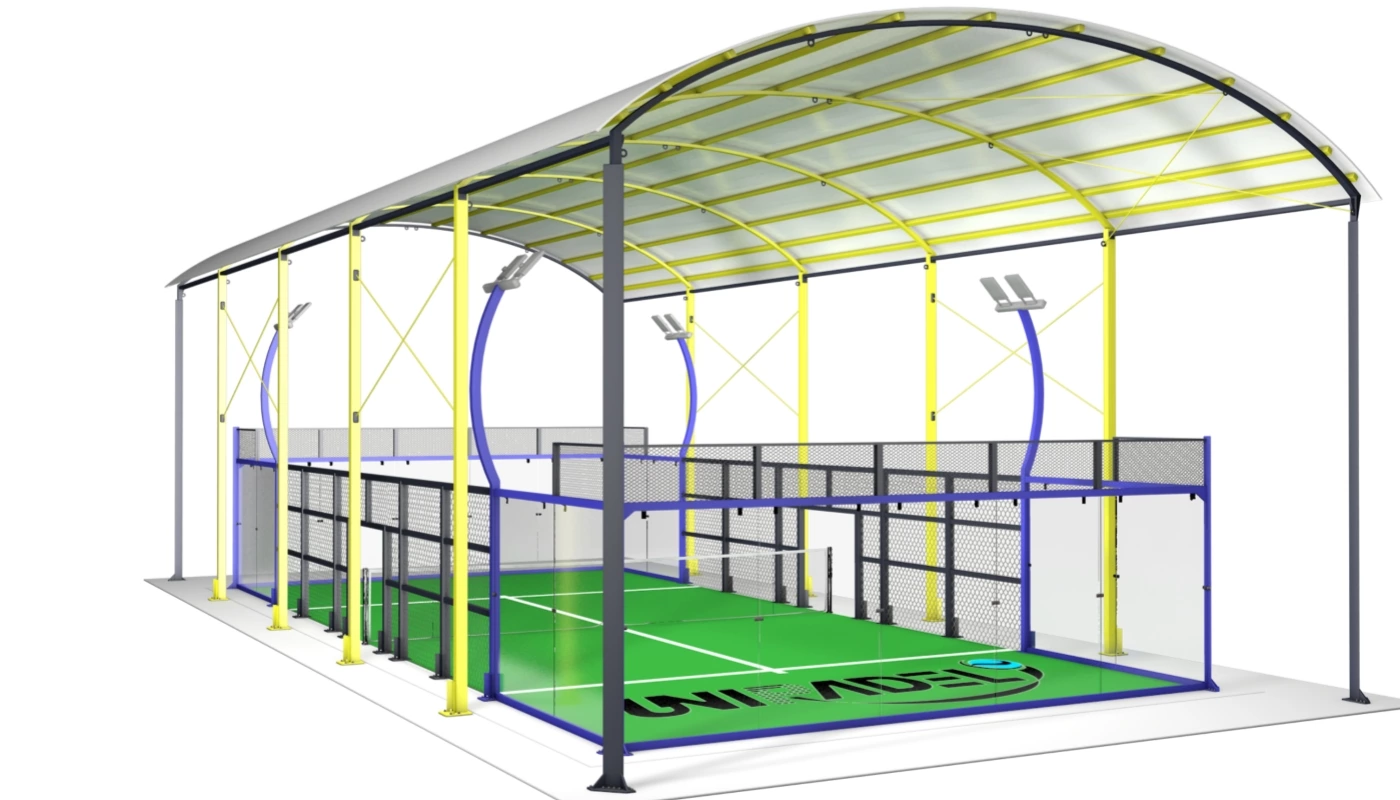

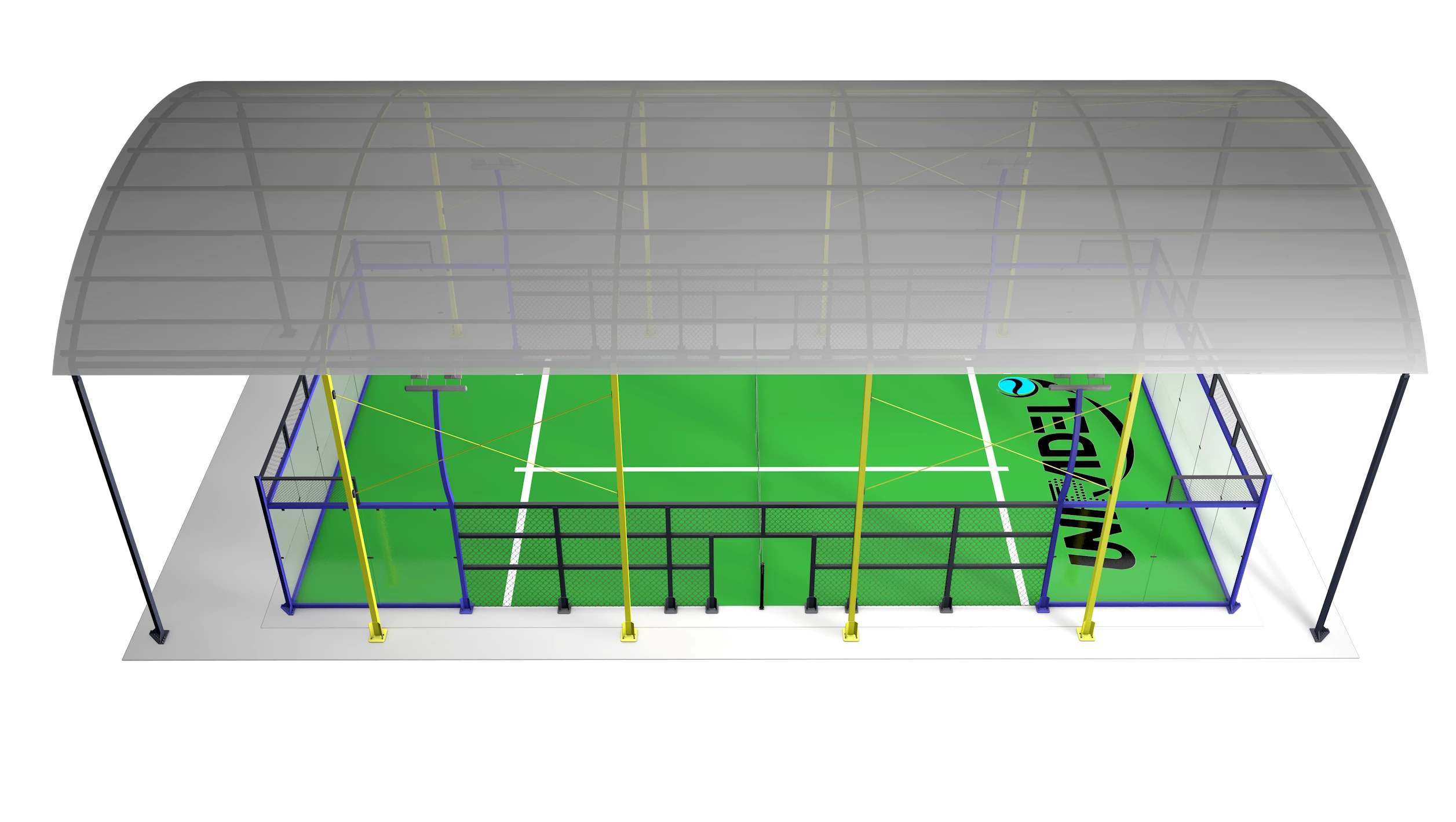

Panoramic Padel Court with Roof
Panoramic Padel Court with Roof
Panoramic Padel Court with Roof
Panoramic Padel Court with Roof
Panoramic Padel Court with Roof
Panoramic Padel Court with Roof

Padel Turf Artificial Grass

UNIPADEL curly textured padel turf is the most popular choice on the current market and is widely used in the World Padel Tour (WPT) and many professional competitions. The characteristic of this artificial turf is that the fibers on its surface are specially designed to form a unique texture and pattern in a curled or twisted way, which provides athletes with better grip and traction and enhances the realism of the game.

Curly padel turf not only improves sports performance, but also creates a more comfortable game experience for players. In addition, the turf can be made of a variety of synthetic fiber materials, and the performance and durability of each material varies from manufacturer to manufacturer, which makes different types of turf show obvious differences when used. We are committed to using high-quality raw materials to ensure that we provide top-quality products for high-level competitions and professional padel players to meet their strict requirements for quality and performance.

Whether on the training ground or in competition, UNIPADEL curly turf will become a reliable partner for athletes' performance, making every game full of passion and challenge.

blue
Blue
green
Green
red
Red
