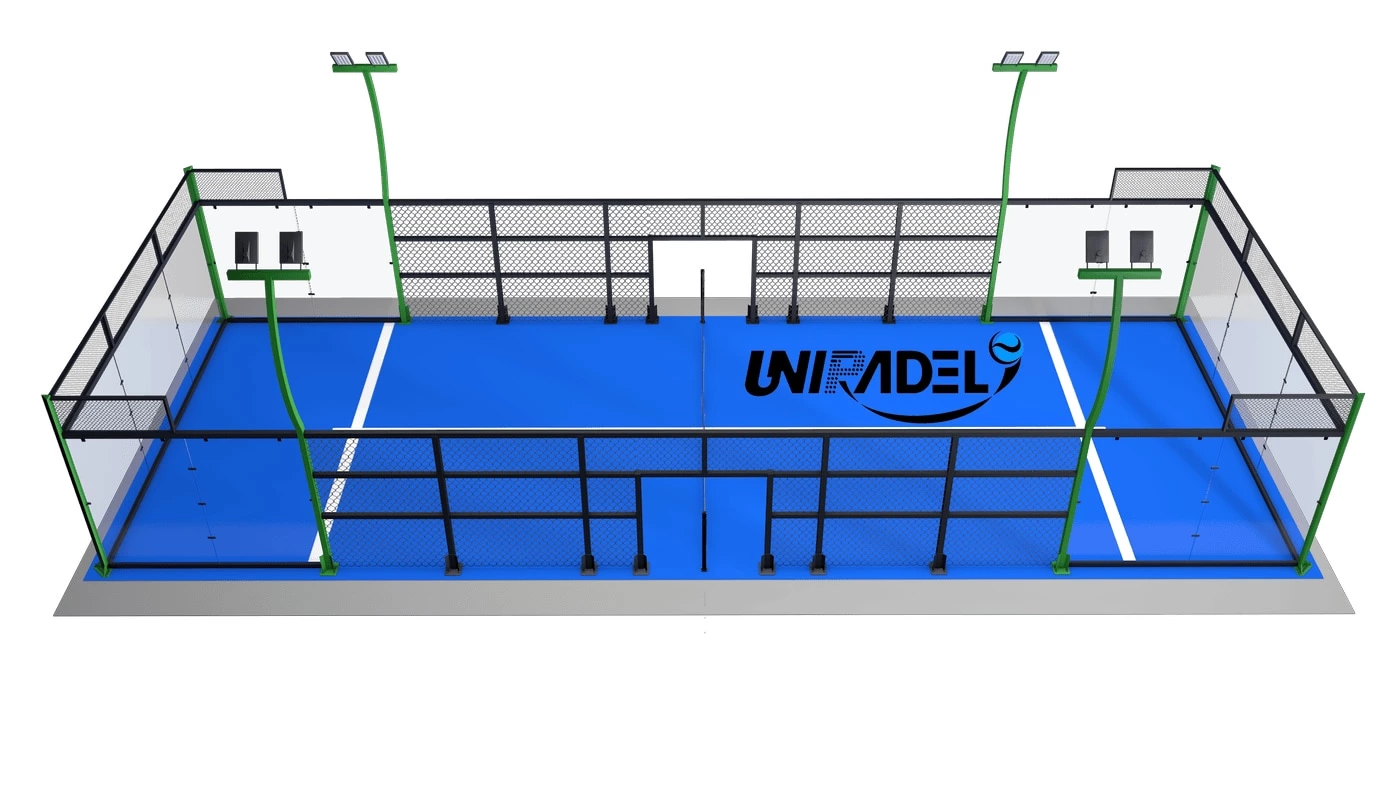

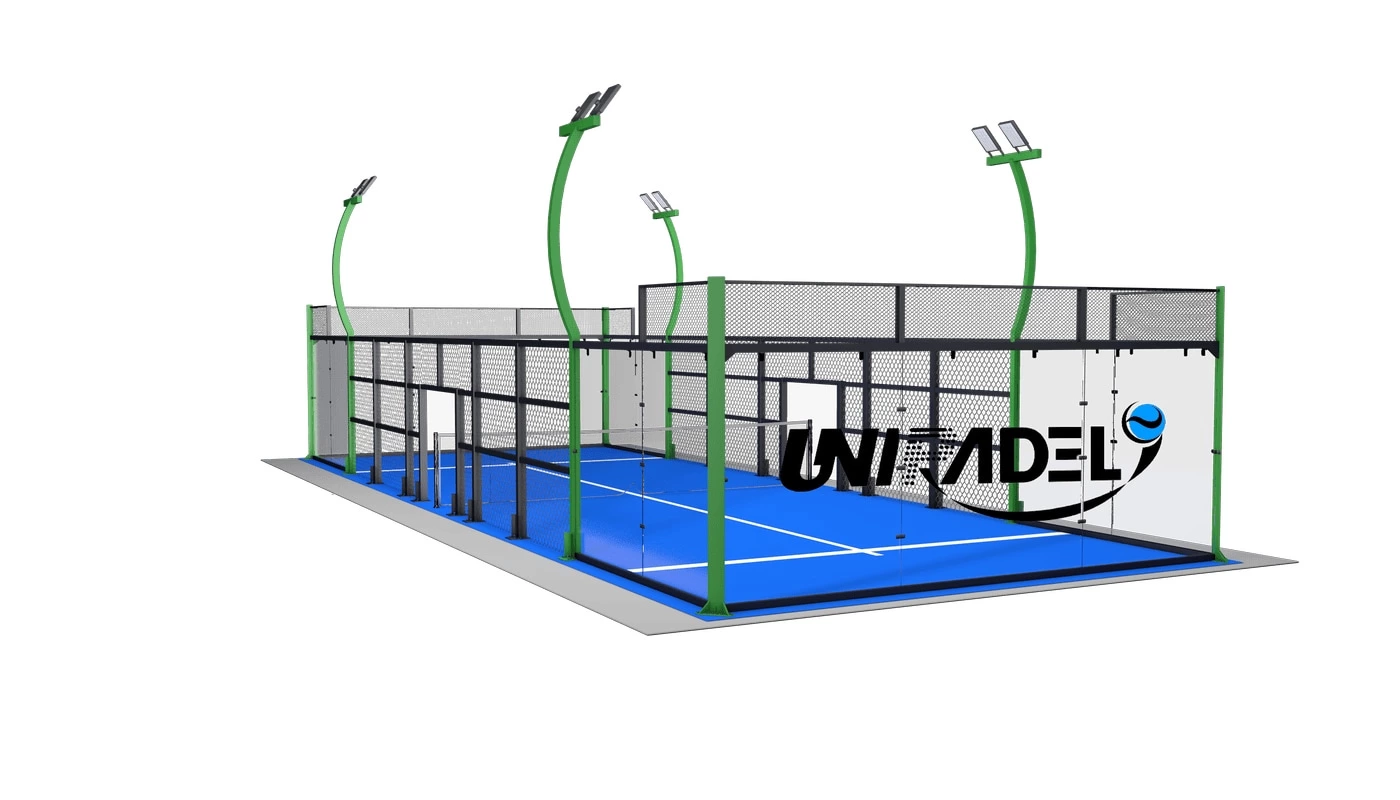

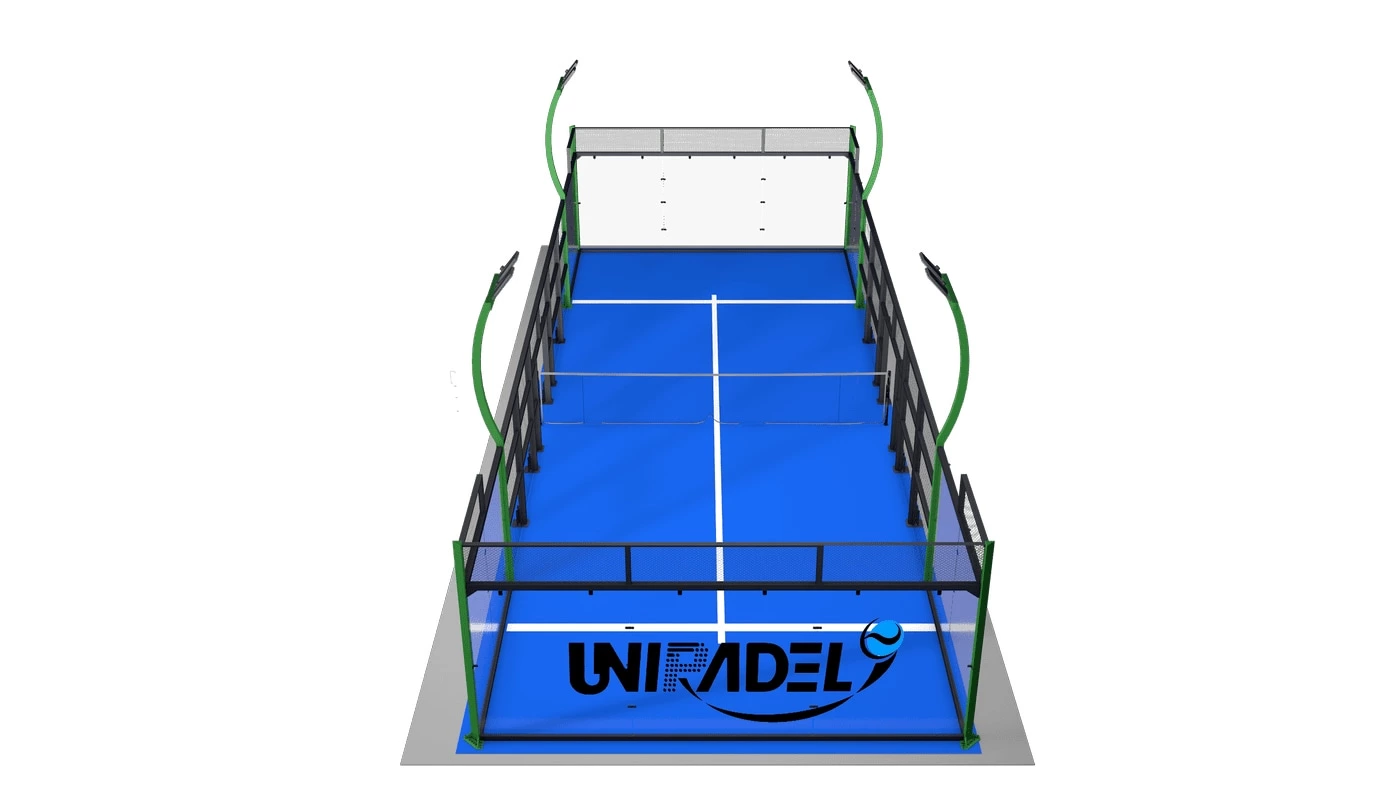

Single Padel Court(Panoramic)

Introduction

The Single Padel Court (Panoramic Court) is an innovative venue designed for individual training and entertainment needs, usually measuring 6 meters wide and 20 meters long. This compact design is not only easy to install, but also provides users with a unique sports space. The court is surrounded by full glass walls, ensuring that players can enjoy a 360° panoramic view when training. This transparent structure allows sufficient light to enter, creating a bright environment, while also allowing external spectators to easily watch the game, increasing interactivity and participation.

The court combines modern design with high-quality materials to provide a high-quality sports experience. The efficient lighting system ensures all-weather availability, allowing players to conduct high-quality training during the day or at night. The design of the panoramic court not only improves the training effect, but also increases the fun of entertainment, especially suitable for single practice or small group activities. Whether it is a private court or a small training facility, this flexible design can meet the needs of different users and provide an excellent sports experience.

Structure Technical Details

Single Padel Court(Panoramic)

Padel Court Dimensions

The standard size of a panoramic single padel court is 6 meters wide and 20 meters long. This size provides a moderate field space for singles games. The 6-meter width ensures that players can be flexible when running back and forth on the sidelines, while the 20-meter length provides enough space for longitudinal running, allowing players to have more room to maneuver during the game.

Galvanized Steel Mesh

Material: Hot Galvanized Steel Grade: Q235B

Frame column size:50mm*30mm*2mm(c)

Mesh hole size: 50mm*50mm*4mm

Mesh size : 1x2m/Piece

Surface treatment:Powder coating'

Galvanized Steel Post

Material: Hot Galvanized Steel Grade: Q235B

Corner post: 80mm*80mm*3mm, height: 3M

Column: 80mm*60mm*3mm, height: 3M

Cross bar: 80mm*80mm*3mm, length: 4m/5m

Light Arm size50*50*2.5mm, H3M(Cshape )

Center post: 80mm*80mm*3mm Height: 980mm

Padel Court Tempered Glass

Thickness: 12mm

Light Transmission(TL %): 87%

Outdoor Reflection (RLe%):7.9%

Glass size: 1990mm*3000mm */pieces

Package: Wood Carton

Finish: Hole drilled"

Padel Turf

Fibrillated polypropylene artificial turf fiber with progressive fibrillation alignment model

Pile height: 12mm

Yarn Dtex: 9500 Dtex

Backing: Latex PP+Net+Sbrwith white marking line together

Warranty: 8 years for outdoors

Color:Blue,Light Blue、Green、Purple 、Pink or customized

Certificate:CE, SGS, ROHS, REACH"

Padel Court Lighting

Working voltage: AC220V

Power: 200W

Luminous efficiency: ≥120LM/W

Power factor: ≥0.95

Lamp bead color temperature: 5700K

Color rendering index: Ra70

Light source type: SMD 3030

Protection class: IP65

Working Temperature: – 25ºC ~ +45ºC

Padel Courts Design

UNIPADEL provides customized padel court posts in a variety of colors to meet personalized needs for the appearance of the venue.

The black frame is stable and elegant, suitable for high-end venue design; the blue frame is full of vitality and brings a sense of freshness; the orange frame is bright and enthusiastic, suitable for fashionable style venues; the white frame is simple and elegant, highlighting the high-end atmosphere; the green frame is natural and environmentally friendly, blending in with the environment; the purple frame is mysterious and unique, increasing the visual appeal of the venue.

In addition to the above, customers can also choose other custom colors according to their brand or personal preferences. The choice of frame color is usually combined with the lawn color to ensure the best overall visual effect.

Single Padel Court(Panoramic)
Single Padel Court(Panoramic)
Single Padel Court(Panoramic)
Single Padel Court(Panoramic)
Single Padel Court(Panoramic)
Single Padel Court(Panoramic)

Padel Turf Color

blue
Blue
green
Green
red
Red
